STM 10mm Wheel Spacers for Mitsubishi Evo DSM 3S

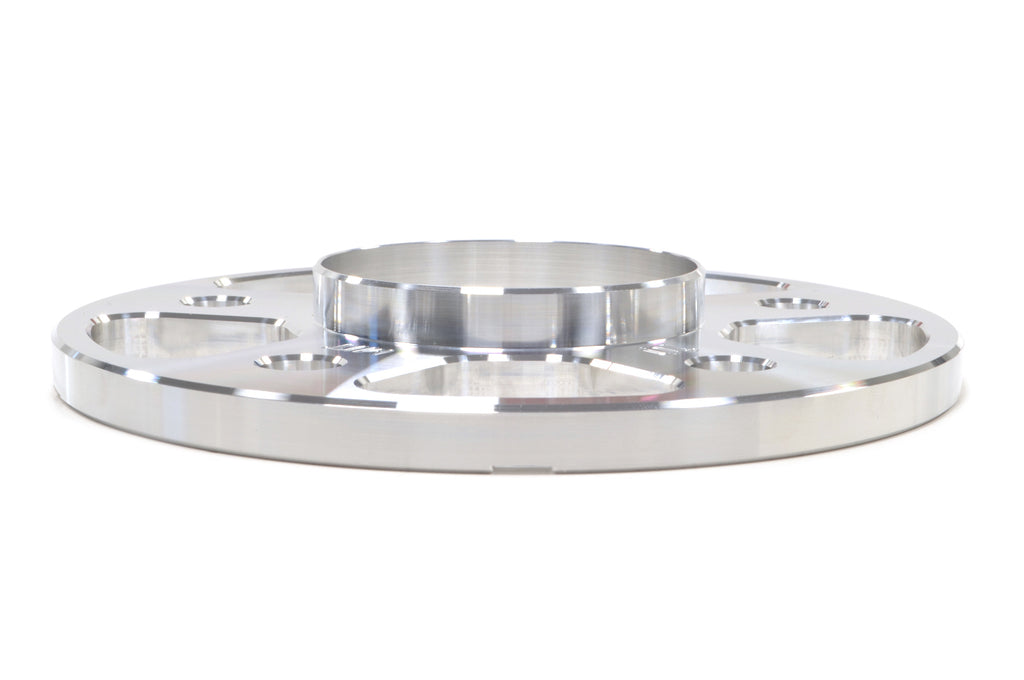

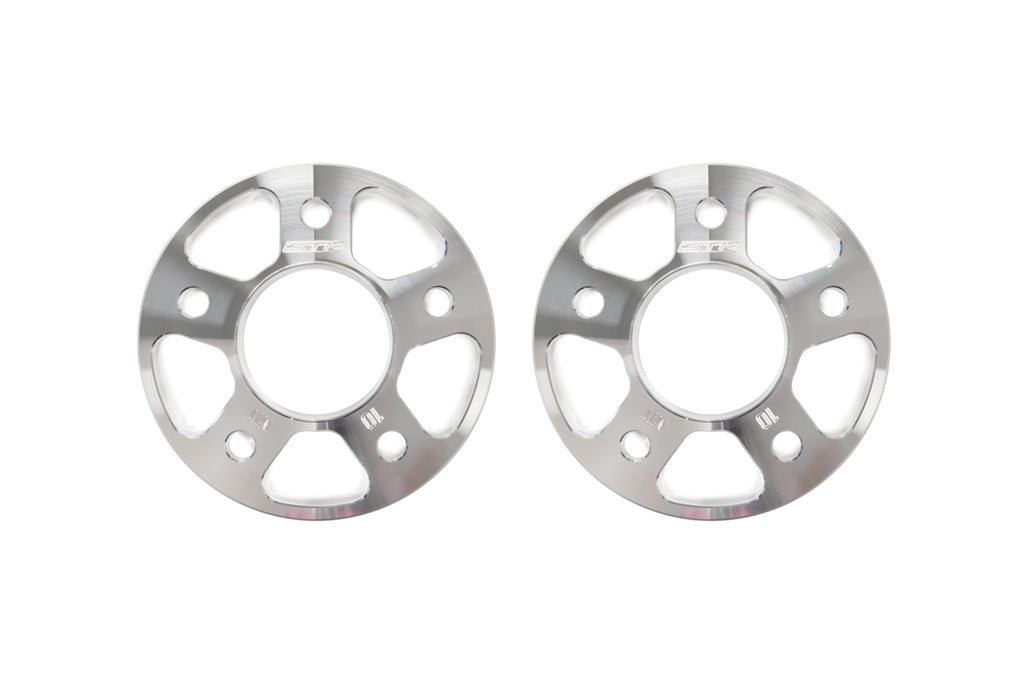

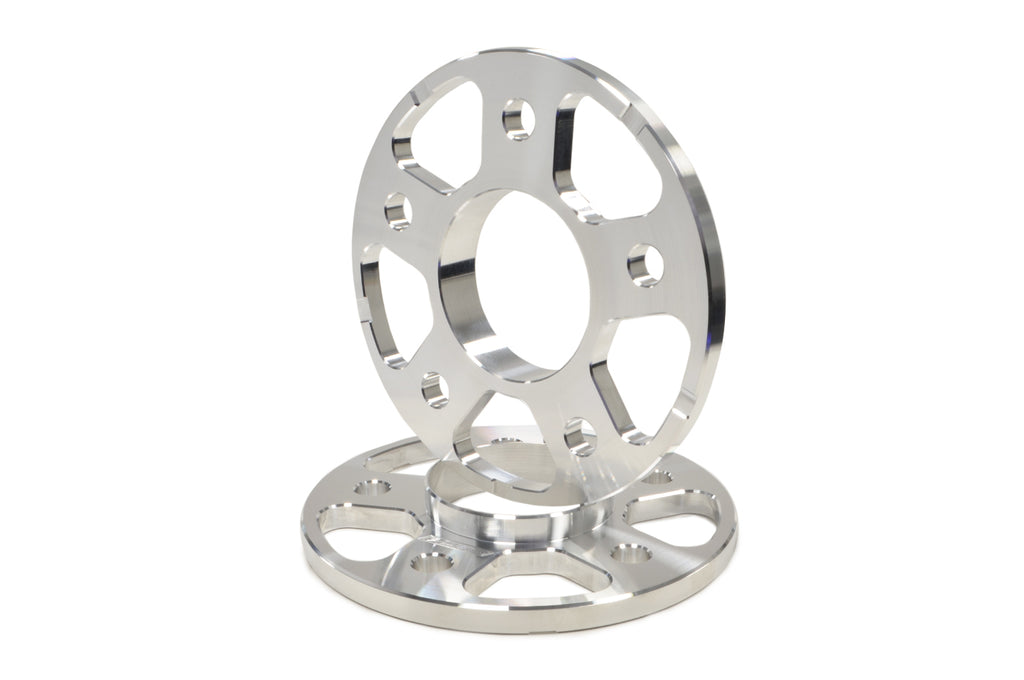

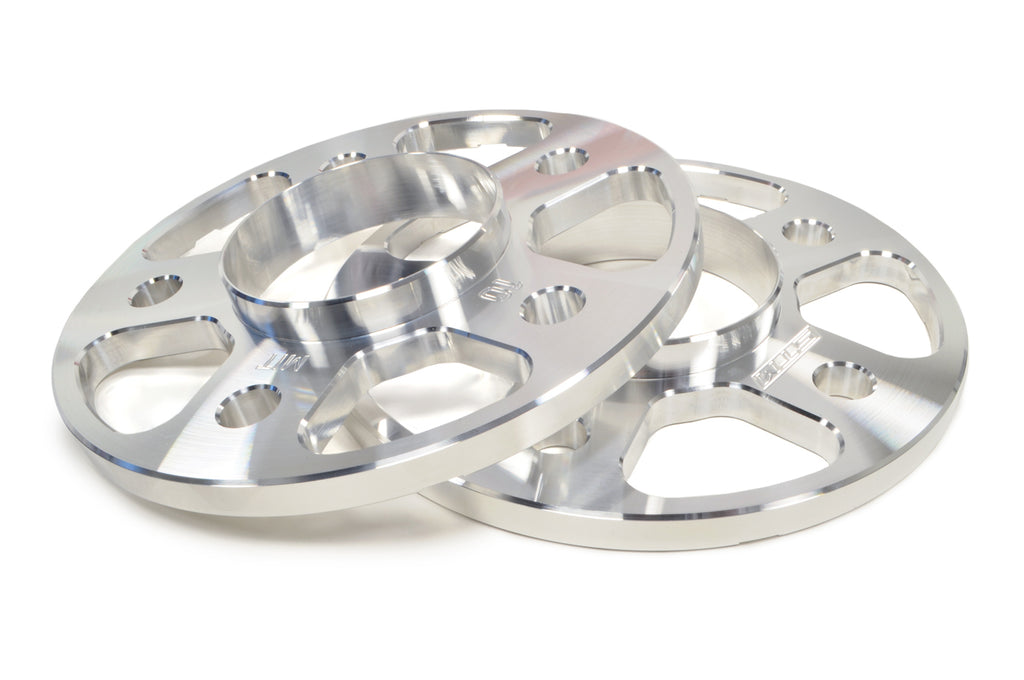

STM 10mm wheel spacer kit for DSM, Evo, GVR4 and 3000GT/Stealth can be used on the front or rear. The spacers have a 5x114.3 bolt-pattern to fit the stock 67.1mm hub but machined for a 70.1 wheel bore. These are not for use with stock wheels. Your wheels must have at least a 70.1mm hub bore. USA-made in house at STM! Elongated wheel studs are required when running these spacers so we offer the ARP 100-7717 M12x1.5 studs to match if you don't already have them.

Wheel Fitment:
• Fits with 70.1mm or bigger wheel bore
• Does NOT fit with stock wheels!
• Elongated wheel studs ARE required when running these spacers!

Vehicle Fitment:
• Mitsubishi Evolution I-X
• 1990-1999 Eclipse GST/GSX
• 1990-1998 Talon TSi
• 1990-1994 Laser RS
• 1991-1992 Galant VR4
• 1991-1999 3000GT
• 1991-1996 Stealth

Wheel Spacer Specs:
• 10mm Spacer
• 5x114.3 bolt pattern
• 67.1mm hub side
• 70.1 wheel side

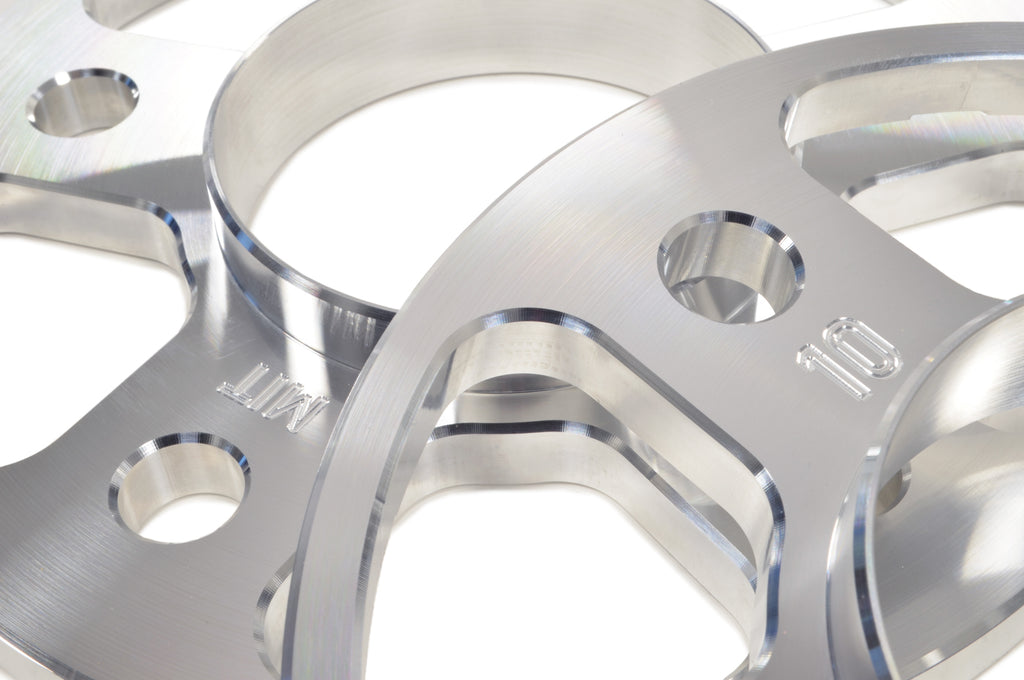

• 10mm size clearly marked
• Lightweight (9.55 oz each)
• Recessed for easy removal
• Billet T6 6061 aluminum

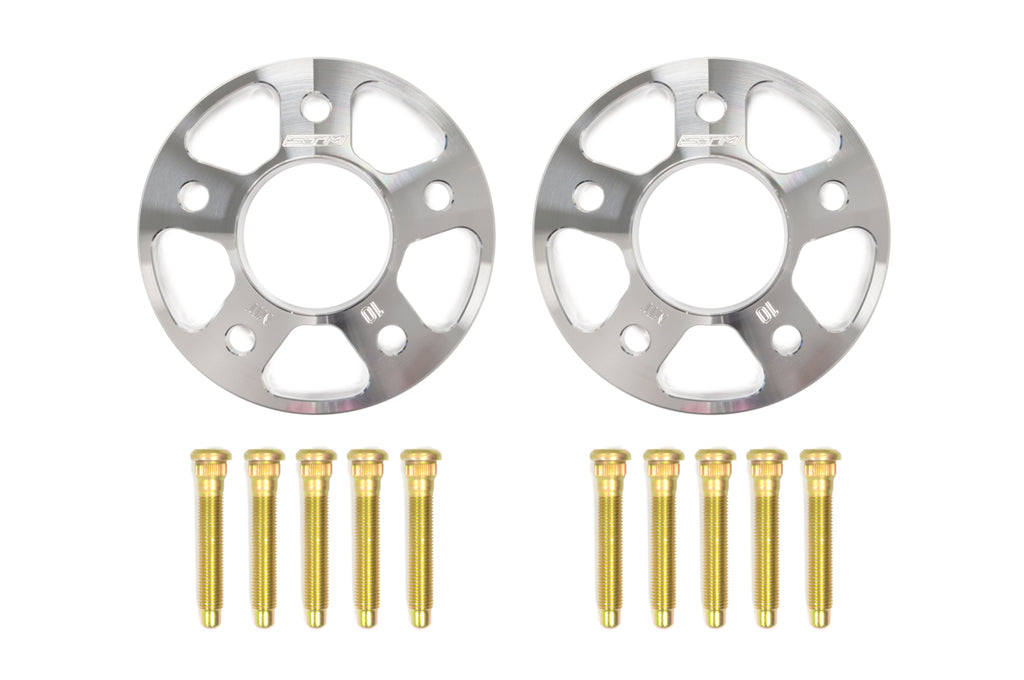

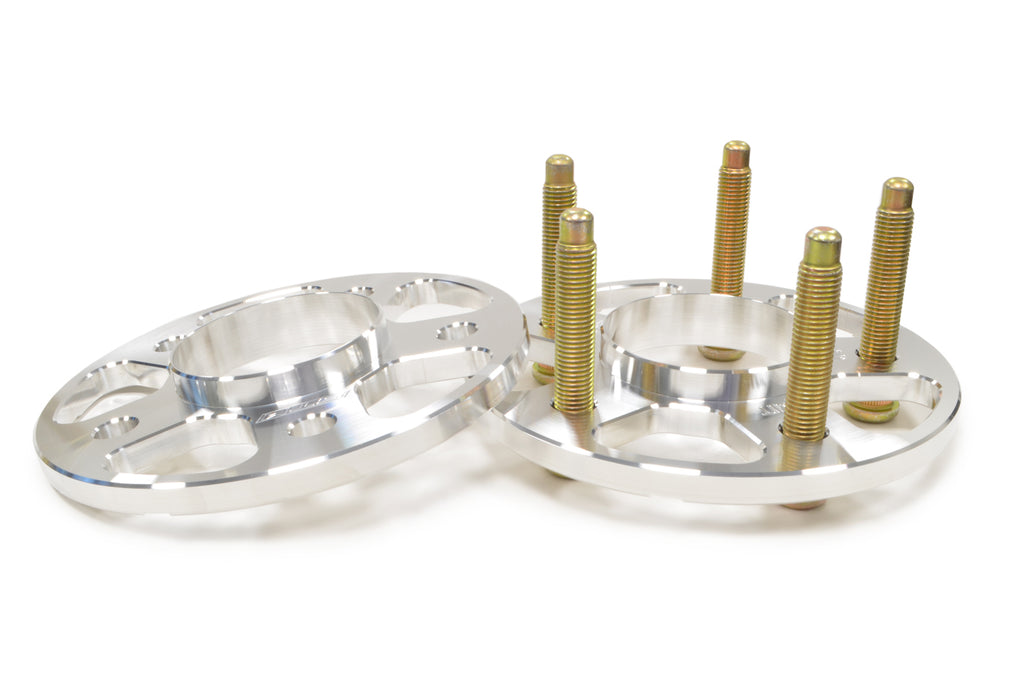

ARP (100-7717) Wheel Stud Specs:
• M12 x 1.5 Thread
• 0.565" Knurl Diameter
• 3.00" UHL
• 0.27" Knurl Length
• 0.35" Nose Length

Additional Fitments:
The wheel spacers (without studs) will also fit the vehicles below, but you will need to research and source your own elongated wheel studs. Elongated wheel studs ARE required when running these spacers!
• 2005-2016 Mitsubishi Lancer
• 2000-2012 Mitsubishi Eclipse
• 1994-1995 Mazda RX7
• 2004-2011 Mazda RX8
• 1995-2003 Mazda Protege
• 2004-2016 Mazda Mazda 3
• 2007-2010 Mazda Mazda 5
• 2007-2016 Mazda Mazda 6
• 2008-2016 Mazda MX5 Miata
• 2010-2016 Hyundai Genesis
