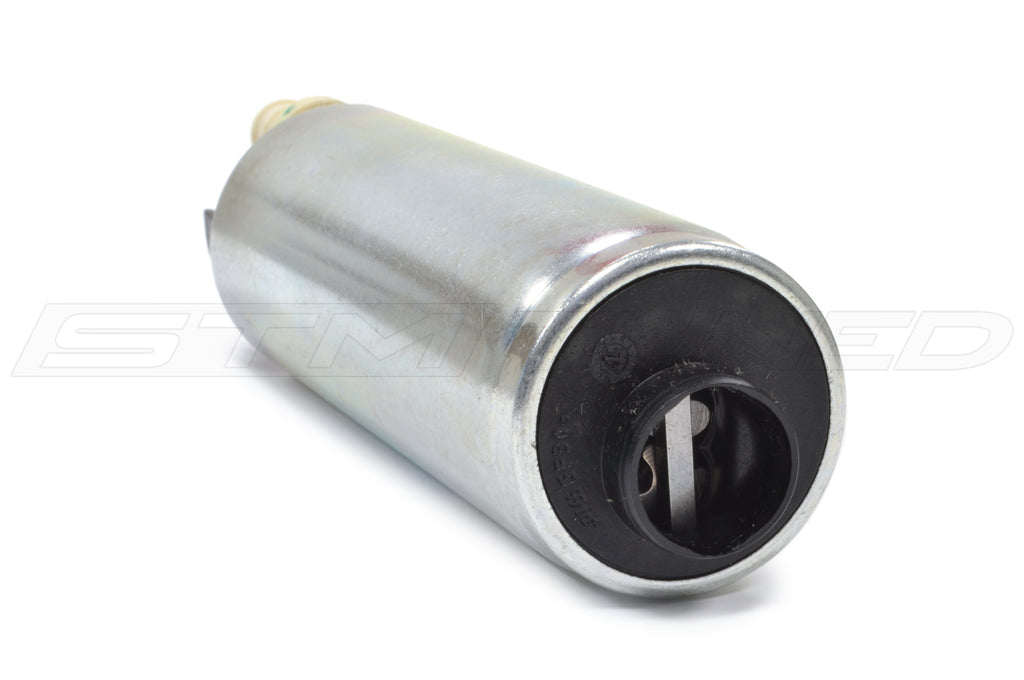

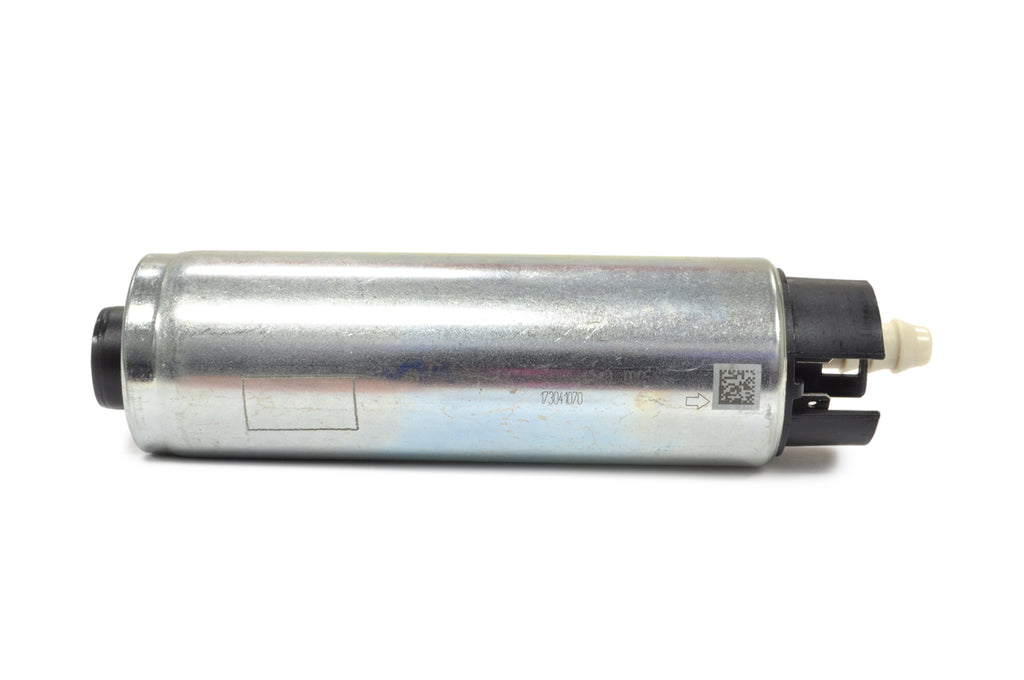

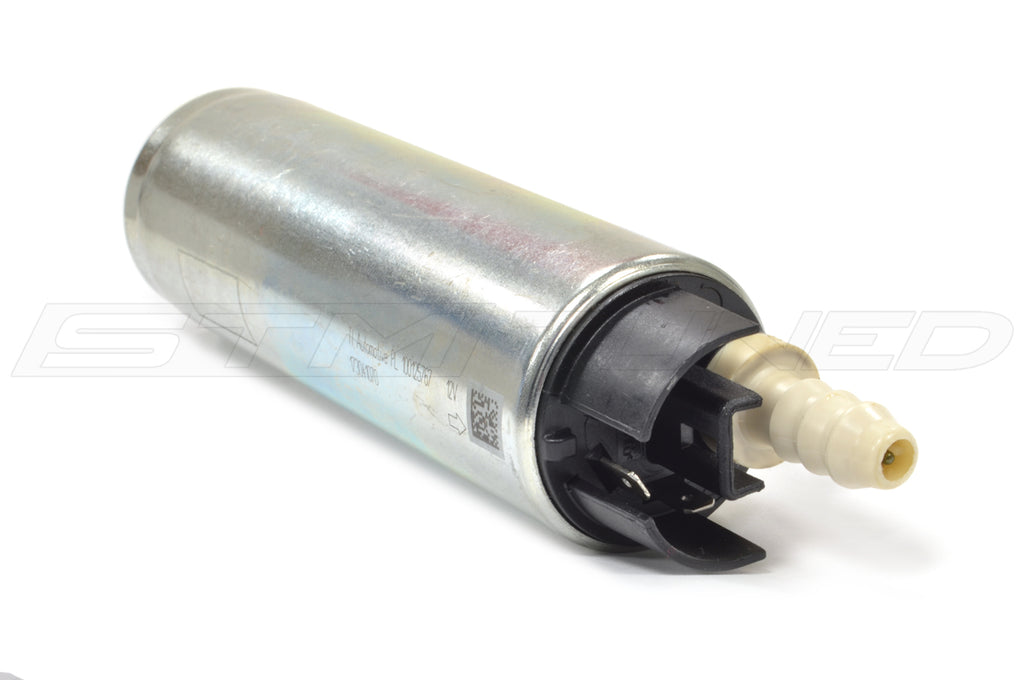

Walbro/Ti E5LM Brushless Fuel Pump

Walbro/Ti Automotive E5LM brushless fuel pump is tailored for high-output applications, offering low amp draw to minimize electrical load while maximizing fuel delivery. Its precision engineering and robust construction make it an ideal choice for high-performance and racing applications.

Engineered to be driven by a sensorless 6-step commutation with optional compatibility for advanced control methods such as Sinusoidal or Field Oriented Control (FOC). This robust setup ensures reliable performance and precision management of fuel delivery systems.

Vehicle Fitment:
• Universal
• Known to be used with some RS3/TTRS applications

Efficient Fuel Delivery:
• 525 L/hr at 3 Bar (44 psi)
• 465 L/hr at 5 Bar (73 psi)
• 375 L/hr at 7 Bar (101 psi)
• Maximum Pressure: 8.2 Bar

Key Specifications:
• Optimized for High Performance
• Designed to effortlessly support engines up to 1000+ horsepower under typical operating conditions

Inlet/Outlet Fittings:
• 19mm inlet
• 11mm outlet
• Robust fittings for secure and efficient fuel flow

Compact and Durable Design:
• Body Diameter: 38.25mm
• Overall Length: 155mm
• Pump Model: E5LM
• Operating Voltage: 12V DC
• Maximum Flow Rate: Up to 594 liters per hour

Purchase Includes:
(1) Fuel Pump
